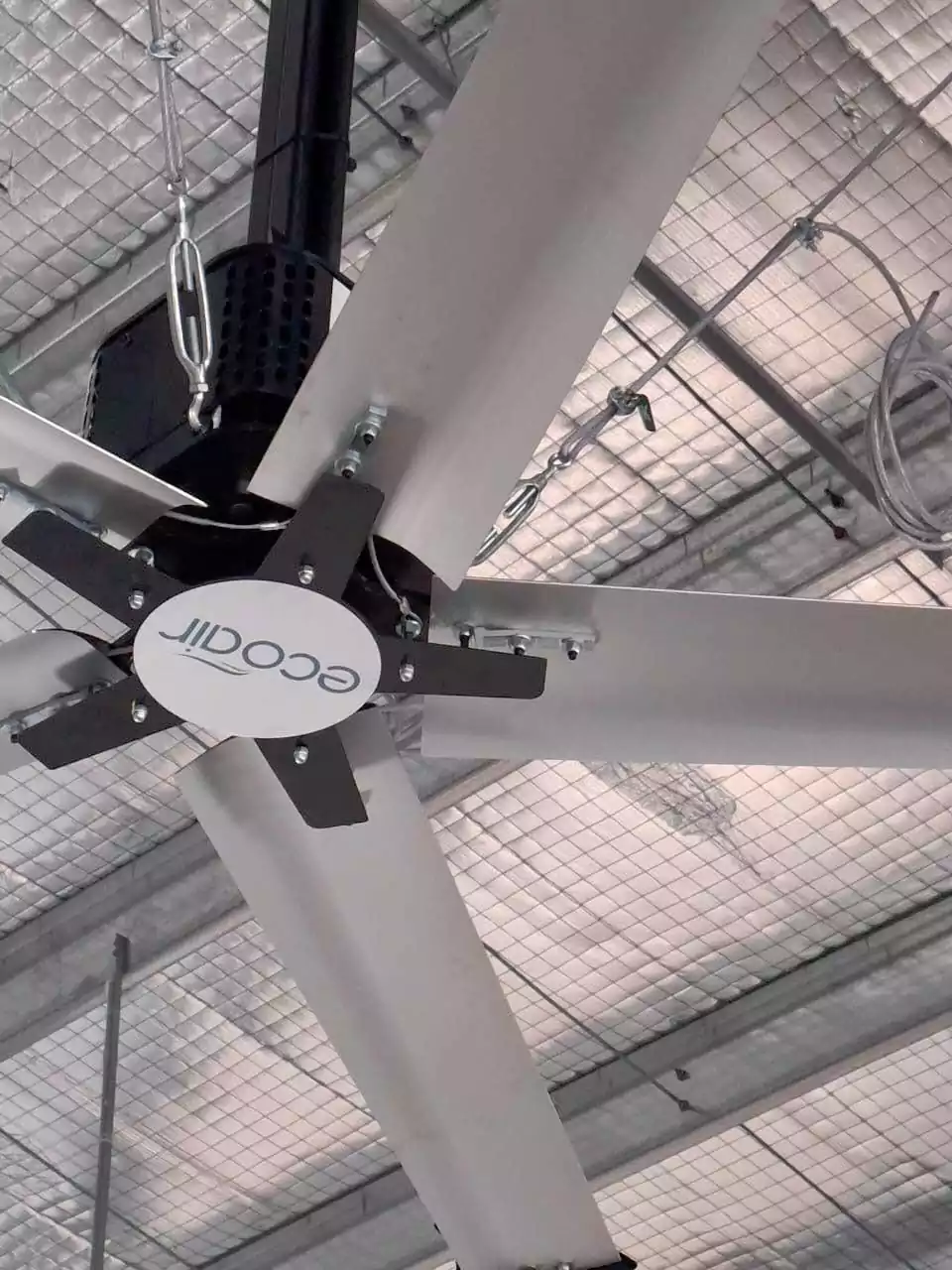

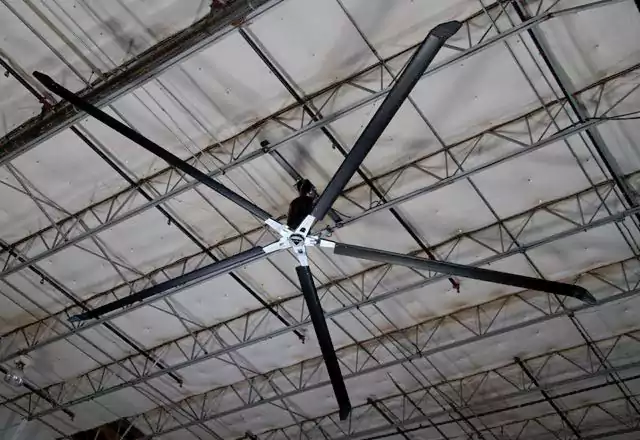

High Volume Low Speed Fans (HVLS Fans)

HVLS fans can drive a large amount of air in very large space and circulate air across an area up to 20 meters from the fans center in all directions (over 1600 sq. meters for a 7.3 meter fan ). Air from above in pushed down to the floor below in a cone shape and then moves in a horizontal stream.

High Volume Low Speed Fans


Item Model Fan Diameter Motor Airflow-CMH Working Area RPM
1 EAHVLA-7E 7300mm(24 feet) 1.5KW 6,42,000 16,000 0-53
2 EAHVLA-6E 6100mm(20 feet) 1.5KW 5,52.000 12,800 0-60
3 EAHVLA-5E 5500mm(18 feet) 1.5KW 4,74,000 1,500 0-67
4 EAHVLA-4E 4900mm(16 feet) 1.5KW 4,02,000 8,500 0-75
5 EAHVLA-3E 360mm(12 feet) 1.1KW 2,88,000 6,300 0-80
